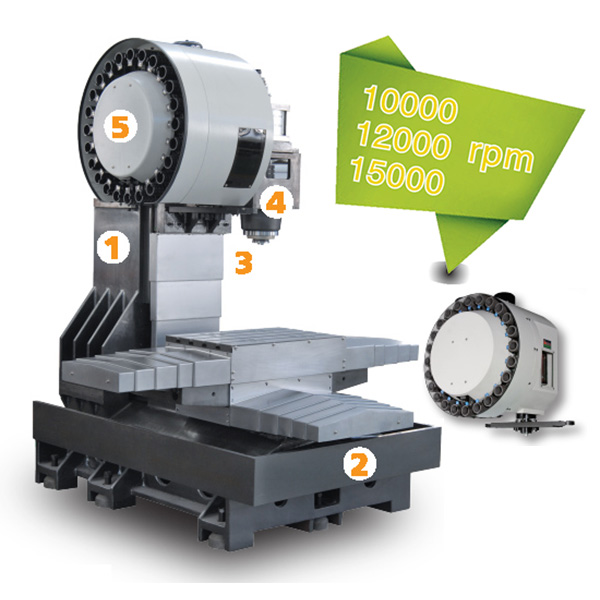

1. FC300 high-grade cast iron
The five major components of the whole machine are all made of FC300 advanced castings, with stable metal characteristics, low internal stress, and can effectively support the vibration generated during heavy cutting, with high damping effect.
2. Large span base
The span of the base slide rail is increased, effectively supporting the saddle that moves forward and backward and the worktable that moves left and right. The center of gravity of the machine is low, the cutting support force is higher, and it is convenient for loading and unloading thick heavy parts.
3. D1: D2 contact ratio between spindle head and column
Through precise analysis and calculation by FAE, the support ratio between the head casting and the column has reached (D1: D2), reducing the load on the Z-axis while also improving the rigidity and flexibility of the machine.
4. Japanese/Taiwanese C3 grade ball screw and roller linear slide rail
The roller design combines the rigidity of the hard rail structure with the speed of the ball track. Whether in heavy cutting or high-speed movement, the machine maintains good performance.
5. Knife arm type tool changing mechanism and fast cutting cylinder
For users of mass production processing, the arm type tool changer provides higher processing flexibility and efficiency. Paired with a fast cutting cylinder, the tool change time for knife to knife is only 1.3 seconds.
The five major components of the whole machine are all made of FC300 advanced castings, with stable metal characteristics, low internal stress, and can effectively support the vibration generated during heavy cutting, with high damping effect.
2. Large span base
The span of the base slide rail is increased, effectively supporting the saddle that moves forward and backward and the worktable that moves left and right. The center of gravity of the machine is low, the cutting support force is higher, and it is convenient for loading and unloading thick heavy parts.
3. D1: D2 contact ratio between spindle head and column
Through precise analysis and calculation by FAE, the support ratio between the head casting and the column has reached (D1: D2), reducing the load on the Z-axis while also improving the rigidity and flexibility of the machine.
4. Japanese/Taiwanese C3 grade ball screw and roller linear slide rail
The roller design combines the rigidity of the hard rail structure with the speed of the ball track. Whether in heavy cutting or high-speed movement, the machine maintains good performance.
5. Knife arm type tool changing mechanism and fast cutting cylinder
For users of mass production processing, the arm type tool changer provides higher processing flexibility and efficiency. Paired with a fast cutting cylinder, the tool change time for knife to knife is only 1.3 seconds.
